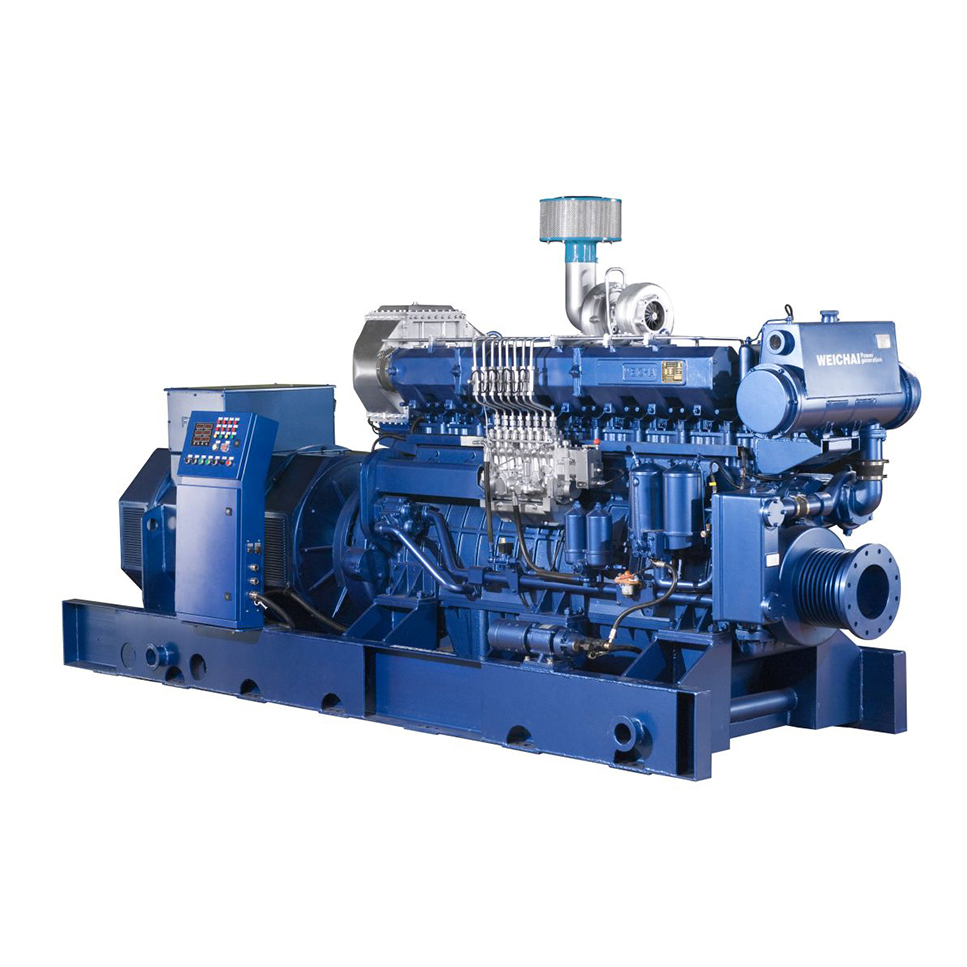

WEICHAI MARINE GENERATOR

Weichai marine generator Power range 30KVA-375KVA 24Kw-300Kw 50HZ/1500RPM Powered by Weichai engine coupled with Marathon Alternator, Stamford, Sunvim, Siemens alternator are optional EIAPP (Nox) certificate Weichai marine diesel generator approved by CCS,BV Specification-Weichai series Technical Parameter

Terms of Shipping

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
All purchases shall be FOB Destination for the Buyer’s distribution centers in the continental United States. Buyer shall not require the Seller to engage in any drop shipments of the Products. Shipments shall be made by regular courier unless Buyer, in writing, so requests special delivery in which case Buyer shall be responsible for the costs of such special delivery.
Unless otherwise agreed in writing by Company, all Products will be delivered EXW (Ex Works) Company’s designated delivery point, in accordance with Incoterms 2000. The responsibility of the Company for all shipments ceases upon delivery of Products in good order to designated delivery point. Company may ship the Products in one or more lots; such lots may be separately invoiced and shall be paid for when due per invoice, without regard to subsequent deliveries. Shipment dates are estimates only and indicate the date the Product is scheduled to ship from Company’s factory. No contract has been made to ship in a specified time and any “time is of the essence” clause or language and claims for backcharges are specifically rejected. Delay in the delivery of Products hereunder shall not relieve Buyer of its obligation to accept and pay for Products under any other agreement or purchase order. If delivery as originally scheduled is delayed by Buyer, Company may invoice Buyer and store the Products at Buyer’s expense.

MARINE GENSET SPECIFICATION				ENGINE SPECIFICATION			ALTERNATOR SPECIFICATION		UNIT APPEARANCE
Model	Rated Output		Fre/Volt	Model	Power/Speed Kw/RPM	Cyl.	Model		Dimension L×W×H (mm)	Weight (Kgs)
Model	KW	KVA	Hz/ V	Model	Power/Speed Kw/RPM	Cyl.	Marathon	Stamford	Dimension L×W×H (mm)	Weight (Kgs)
CCFJ24JW	24	30	50/400	D226B-3CD	30/1500	3	MP-H-24-4	PM144H	1500* 1200* 1180	1130
CCFJ30JW	30	37.5	50/400	TD226B-3CD	40/1500	3	MP-H-30-4	PM144K	1510* 1200* 1180	1150
CCFJ50JW	50	62.5	50/400	WP4CD66E200	60/1500	4	MP-H-50-4	UCM224F	1695* 1200* 1180	1250
CCFJ75JW	75	93.8	50/400	WP4CD100E200	90/1500	4	MP-H-64-4	UCM274D	1695* 1250* 1210	1350
CCFJ100JW	100	125	50/400	WP6CD132E200	120/1500	6	MP-H-75-4	UCM274E	2125* 1250* 1170	1640
CCFJ120JW	120	150	50/400	WP6CD152E200	138/1500	6	MP-H-90-4	UCM274G	2180* 1250* 1170	1650
CCFJ150JW	150	187.5	50/400	WP10CD200E200	182/1500	6	MP-H-100-4	UCM274J	2520* 1250* 1530	1950
CCFJ180JW	180	225	50/400	WP10CD238E200	216/1500	6	MP-H-180-4	UCM274K	2520* 1250* 1550	1980
CCFJ200JW	200	250	50/400	WP10CD264E200	240/1500	6	MP-H-200-4	HCM434D	2620* 1250* 1620	2100
CCFJ250JW	250	312.5	50/400	WP12CD317E200	288/1500	6	MP-H-250-4	HCM434E	2650* 1250* 1660	2180
CCFJ300JW	300	375	50/400	WP13CD385E200	350/1500	6	MP-H-300-4	HCM534C
